PIR WiFi Camera

When top-quality, real-time remote room surveillance is essential, a covert spy camera disguised as a standard security fixture provides the ideal solution.

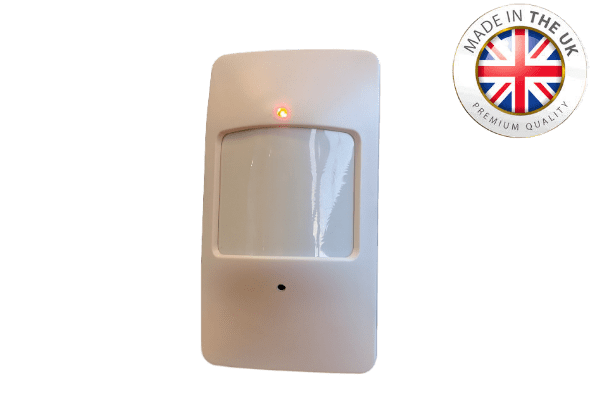

Hand-built in the UK by Spy Equipment UK, this pir wifi camera integrates an HD 1080p IP video camera and recording system inside a standard white motion sensor enclosure.

Because burglar alarm PIR sensors are universally installed at ceiling height in homes, offices, workshops, and retail premises, visitors and employees rarely notice them, ensuring total visual discretion.

The pinhole camera lens is discreetly hand-fitted into the front faceplate, viewing out through a tiny aperture that looks like a secondary LED indicator.

To enhance visual authenticity, an internal red LED flashes at random intervals to replicate a functioning alarm sensor (note: internal components operate strictly for video surveillance and cannot be wired into an intruder alarm panel).

Plug-and-Play Setup – No Specialist Networking Knowledge Needed

Deploying your pir wifi camera is quick and straightforward, requiring zero IT expertise.

The system connects wirelessly to your local 2.4 GHz Wi-Fi router without requiring hardwired Ethernet cables.

Using the free downloadable smartphone app (iOS and Android compatible) or Windows/Mac software, initial setup completes in under ten minutes.

If no local internet connection is present on site, the camera can broadcast a direct point-to-point Wi-Fi signal, allowing short-range live viewing and file playback on your mobile phone within a 10 to 15-metre radius.

HD 1080p Video Streaming & Automated Push Notifications

The 85-degree wide-angle CMOS pinhole lens provides an optimal, unobstructed top-down view of the target room or entryway.

Unlike inferior market alternatives that restrict remote access to the local network range, our enhanced signal antenna streams clear 1080p HD video with synchronized speech-grade audio directly to your smartphone or PC anywhere across the globe.

Customisable recording profiles allow you to select through-the-lens motion detection, sound activation, or scheduled timer recording, sending instant push notification alerts to your mobile device whenever activity is detected.

Continuous Mains Operation with Enlarged 5-Hour Battery Backup

Because standard security sensors are typically wired into walls or ceiling voids, running a USB power cable from the rear of the device appears completely natural.

Primary power is supplied continuously from a standard UK 3-pin USB mains wall adapter.

This unit features an internal lithium backup battery capable of keeping the camera streaming and recording continuously for up to 5 hours if mains power is cut or disconnected.

Video footage is stored directly to 32 GB of internal flash memory as standard (upgradeable to 64 GB or 128 GB, consuming approximately 2.0 GB per hour of 1080p video), with automatic loop overwrite so time-and-date-stamped evidence is never lost.

Check out our wider WiFi spy camera collection for complementary surveillance options.

Provided you deploy your surveillance equipment for lawful purposes, the top uses for a hidden spy camera cover a wide range of residential security, nanny monitoring, and commercial asset protection needs.

If you have questions regarding wall mounting or app configuration for your pir wifi camera, please feel free to contact our expert team today.

Does the PIR wifi camera function as a real intruder alarm sensor?

No. The internal motion-sensing hardware has been replaced exclusively with the 1080p HD camera, Wi-Fi transmitter, and backup battery. It cannot be connected to a burglar alarm panel, though it features a realistic flashing red LED to replicate a working sensor.

How long does the backup battery last if mains power is disconnected?

While the unit is designed for continuous 24/7 mains power operation, it features an enlarged internal lithium backup battery that keeps the video streaming and recording operational for up to 5 hours if mains power fails or is unplugged.

Where is the camera lens located on the unit?

The pinhole camera lens is discreetly hand-fitted into the front faceplate of the PIR housing, looking out through a small aperture resembling an indicator LED, rendering it virtually invisible to casual inspection.

Can I view the live camera feed when I am away from home?

Yes. As long as the camera is connected to a local 2.4 GHz Wi-Fi network with internet access, you can stream live 1080p HD video and audio from anywhere in the world using your iPhone, Android phone, or computer.

How much video storage space does the memory card provide?

The camera uses approximately 2.0 GB of storage for every 1 hour of recorded 1080p HD video. The included 32 GB memory holds up to 16 hours of video, while an upgraded 128 GB card holds up to 64 hours before automatic loop overwriting occurs.

Can multiple Wi-Fi cameras be viewed on the same mobile app?

Yes. Up to 20 individual Wi-Fi IP cameras can be paired to the same remote viewing console app, allowing you to monitor multiple rooms, workshops, or commercial properties simultaneously.

Can the PIR wifi camera operate without an internet connection?

Yes. Using point-to-point Wi-Fi mode, your smartphone can connect directly to the camera’s local wireless signal within a 10 to 15-metre range to view live feeds or review stored footage, even if no internet router is present.

You will need to consider the following to use this equipment:

• Primary operation requires connection to a live mains supply via the supplied USB mains adapter; the internal battery is designed strictly as a 5-hour backup during power interruptions.
• Initial setup requires access to the 2.4 GHz Wi-Fi network name and password on site.
• Having a computer on the local Wi-Fi network is optional but beneficial for storing extended recorded footage directly to a computer hard drive.
• Remote worldwide viewing functions require an active, internet-connected Wi-Fi network; live remote feeds will pause if the Wi-Fi network is switched off or disconnected.
• Standard home and business Wi-Fi networks are fully supported, but shared commercial networks with landing page logins (such as office parks) may block IP camera connections due to security protocols.
• This product does not function as an active burglar alarm sensor; internal space is dedicated exclusively to covert video surveillance hardware.

• Authentic decoy burglar alarm PIR sensor enclosure concealing a high-definition covert Wi-Fi IP camera system.
• Hand-built in the UK by Spy Equipment UK featuring an enhanced antenna for high-stability wireless streaming.
• Inbuilt randomly flashing red status LED replicates the appearance of an active alarm motion detector.
• Pinhole camera lens hidden in the front faceplate with an 85-degree wide field of view.
• Selectable HD video recording resolutions: 1080P, 720P, and 480P with synchronized speech-grade audio.
• Plug-and-play installation via free smartphone app (iPhone & Android) or Windows PC / Mac software.
• Worldwide remote live monitoring and listening over cellular data or remote Wi-Fi networks.
• Through-the-lens motion-activated and sound-activated recording modes with instant phone push alerts.
• Continuous mains-powered operation supported by an internal 5-hour lithium backup battery for power cuts.
• Supports up to 20 individual Wi-Fi cameras feeding onto a single user viewing application.
• 32 GB internal flash memory included as standard (upgradeable to 64 GB or 128 GB capacity).
• Direct point-to-point local Wi-Fi mode allows short-range viewing (10–15 m) without an internet router.

• Product Type: Covert Wi-Fi (IP) Video Camera System inside Decoy Alarm PIR Sensor Housing
• Camera Lens & Field of View: Pinhole CMOS Lens with 85-Degree Field of View
• Video Resolution Options: Selectable 1080P / 720P / 480P HD Video @ 25 FPS with Synchronized Audio
• Antenna System: Integrated Enhanced Signal Antenna for High-Stability Wi-Fi Streaming
• Network Connectivity: Wireless Wi-Fi Protocol (2.4 GHz B/G/N Compatible)
• System Scalability: Multi-Camera Support (Up to 20 IP Cameras on a single viewing console)
• Remote Viewing Compatibility: iOS (iPhone/iPad), Android Smartphones/Tablets, Windows PC / Laptop, Mac
• Recording Modes: Motion Activated, Sound Activated, Scheduled Timer, or Continuous Loop Recording
• Alert Notifications: Sends instant push notifications in response to movement or sound detected in front of the camera
• Storage Capacity: 32 GB Internal Flash Memory included as standard (64 GB and 128 GB upgrades available)
• Storage Consumption & Capacity: Supports up to 128GB Micro SD Card (1 Hour = 2.0 GB 1080p Video Storage)
• Power System: UK 3-Pin USB Mains Power Adapter Supply + Internal 5-Hour Lithium Backup Battery
• Housing Dimensions: Standard Alarm Sensor Dimensions (106 mm × 67 mm × 58 mm)

• PIR WiFi Camera Unit (85° Lens / Enhanced Antenna)
• UK 3-Pin USB Mains Power Adapter & Cable
• Enlarged Internal 5-Hour Lithium Backup Battery
• 32 GB Internal Flash Memory (Pre-Installed as Standard, with Optional Upgrade to 64 GB or 128 GB)
• Free Smartphone App & PC/Mac Viewer Software Downloads
• Step-by-Step User Installation Manual
• Phone and Email Technical Support
